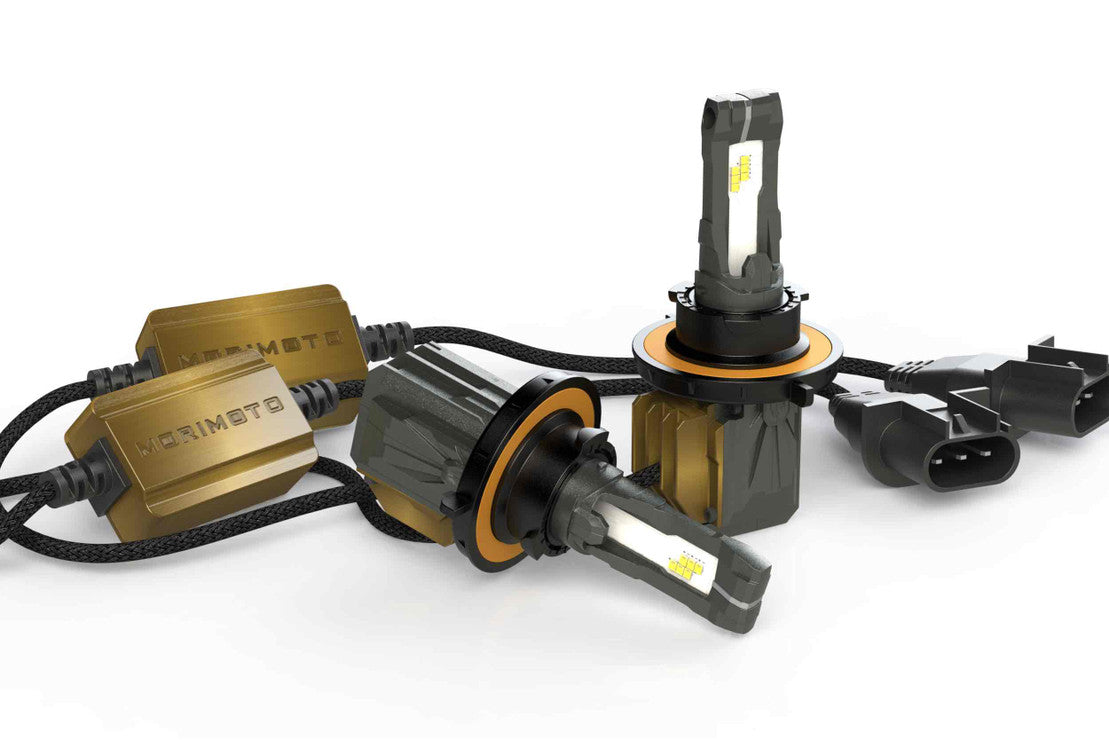

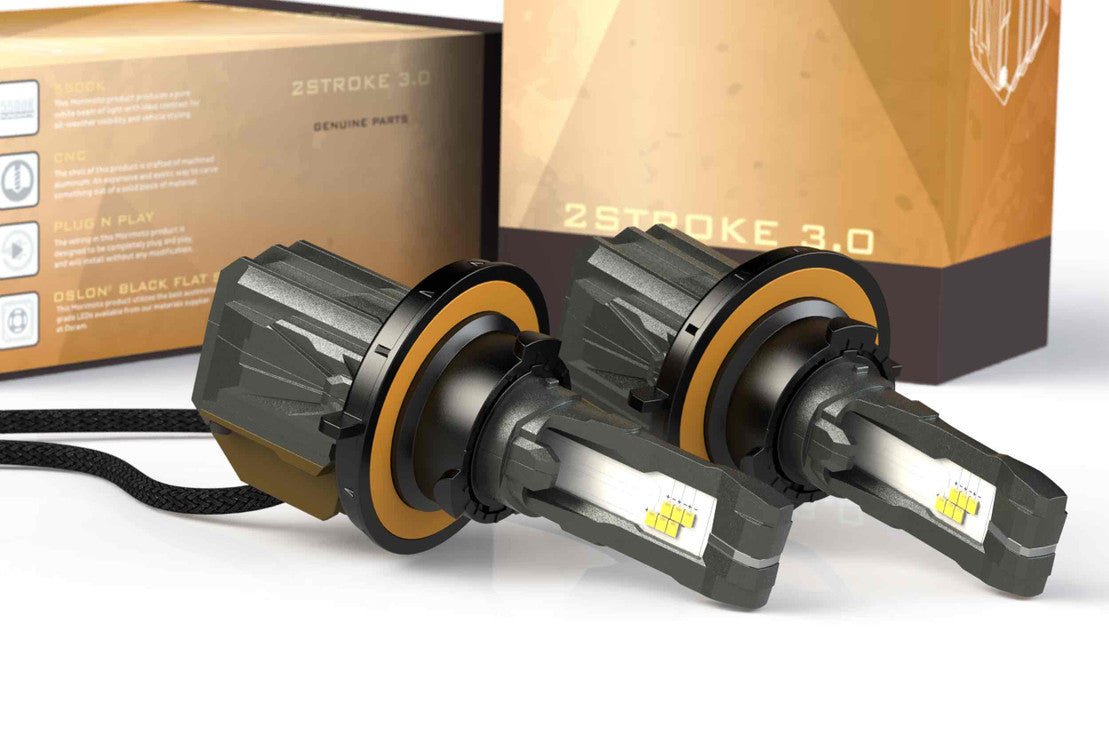

H13/9008: Morimoto 2Stroke 3.0 LED Kit

SKU: LED1524

$229.99 $246.76
save 6%


Share on
Description

Benchmark: Over the course of the last year, Morimoto was hard at work developing a new kind of LED bulb. It re-creates the original beam pattern from your optics effectively by doing more with less. They will put more light on the road for you as the driver, while creating less glare for oncoming traffic compared to any other LED bulb on the market today. While LED bulbs still aren't DOT approved for use in headlights in the states.. foreign markets and fog light users can enjoy the best plug n play LED bulb to date. The 2Stroke 3.0. (Patents Pending)

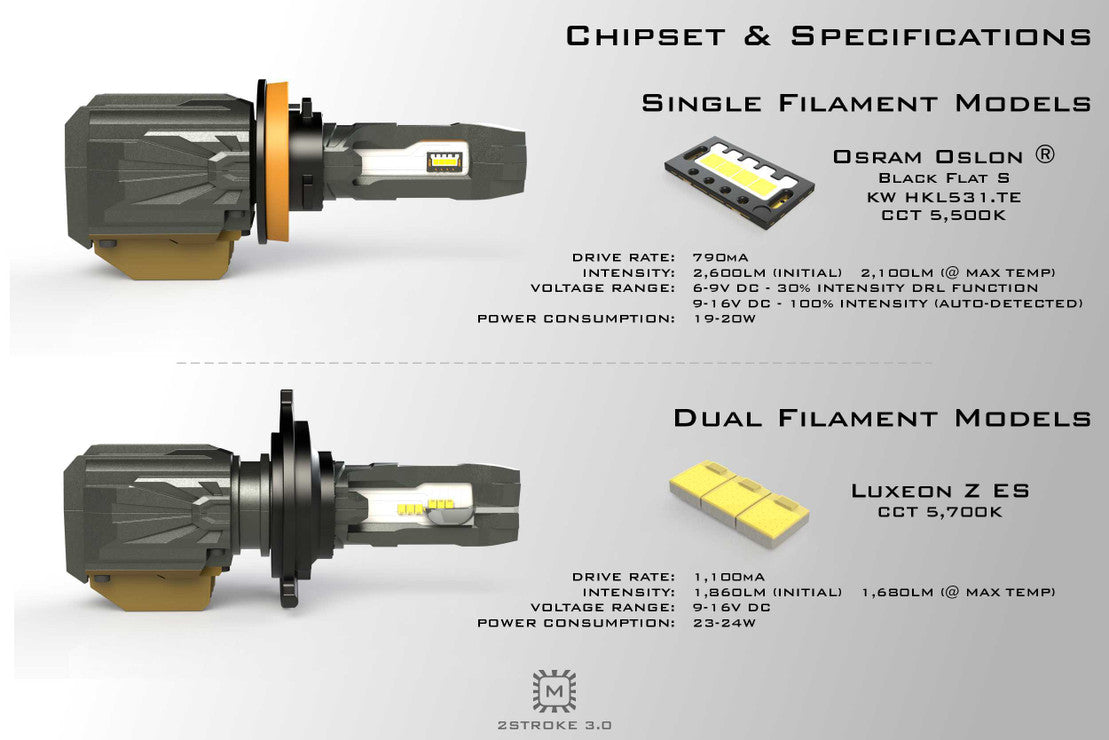

Superior Beam Quality: The advanced PCB technology at the core of the 2Stroke 3.0 sets a new industry benchmark emission surface interval of just 2.4mm total. The PCB core itself is just 1.0mm thick. The dielectric layer: 300um. The circuit pattern: 140um, and the Philips Lumileds Luxeon Z LED chips: just .59mm each. Paired with the tight light-emitting surface area of the LEDs: this adds up to a total cubic volume of 4.46mm. At the end of the day, no LED bulb in the world more closely simulates the filament size of an incandescent bulb more accurately than the Morimoto 2Stroke 3.0--and for those in the know, this is critical when it comes to proper beam distribution.

Optimized focal length: Each size in the 2Stroke 3.0 lineup has been painstakingly optimized for proper output in its designated application. The critical reference distance has been calculated based on the geometry of the bulb base and the footprint of the Osram HKL emitter. To ensure consistency, special tools were designed to quality-control the accuracy of each bulb as it comes off the production line. Most other LED light bulbs on the market use a 'set it and forget it' reference distance across all sizes in the series, which is not the case here.

360 degrees of Rotation: The 2Stroke 3.0 LED bulbs feature a fully adjustable base. In order to fully utilize the optical facets in any reflector or projector: The light emitting diodes must face the 3-o-clock and 9-o-clock positions. Since no single standard exists across different headlight and fog light assemblies, all bulbs in the 2Stroke 3.0 range are fully adjustable. A geared step rotational adjuster mechanism is installed for all bulbs which twist-to-lock, offering adjustability in 15-degree intervals. An omni-adjustable rotation mechanism is utilized on all bulbs that are press-fit or clip into the housing.

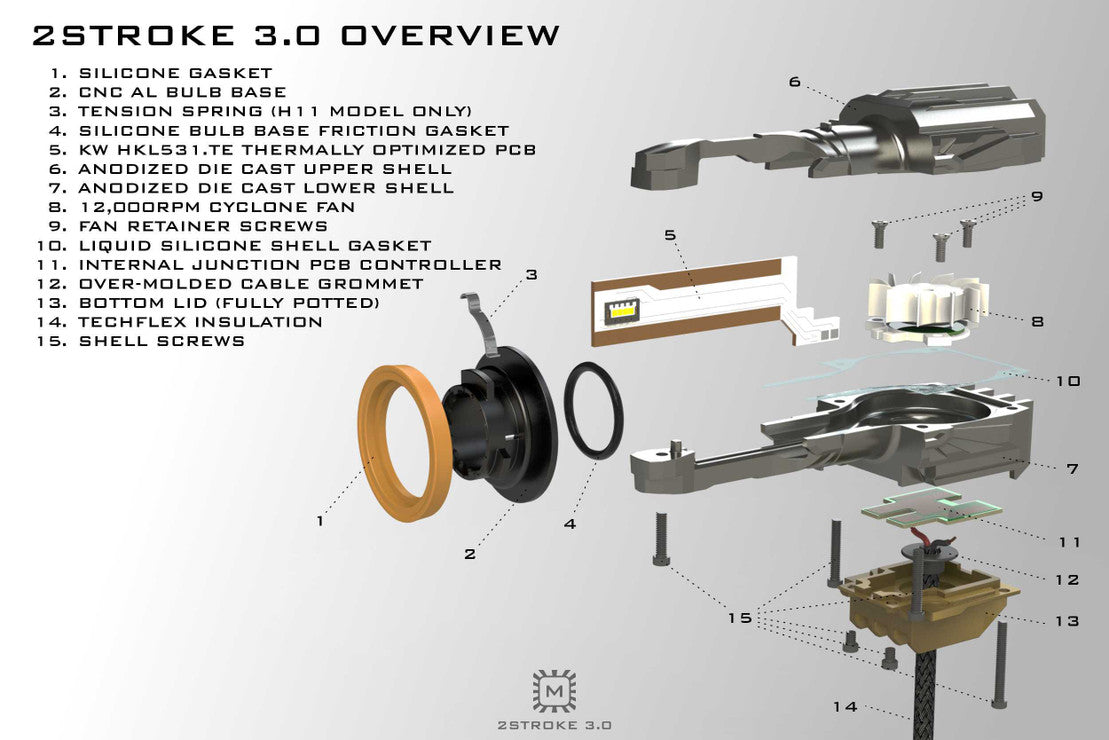

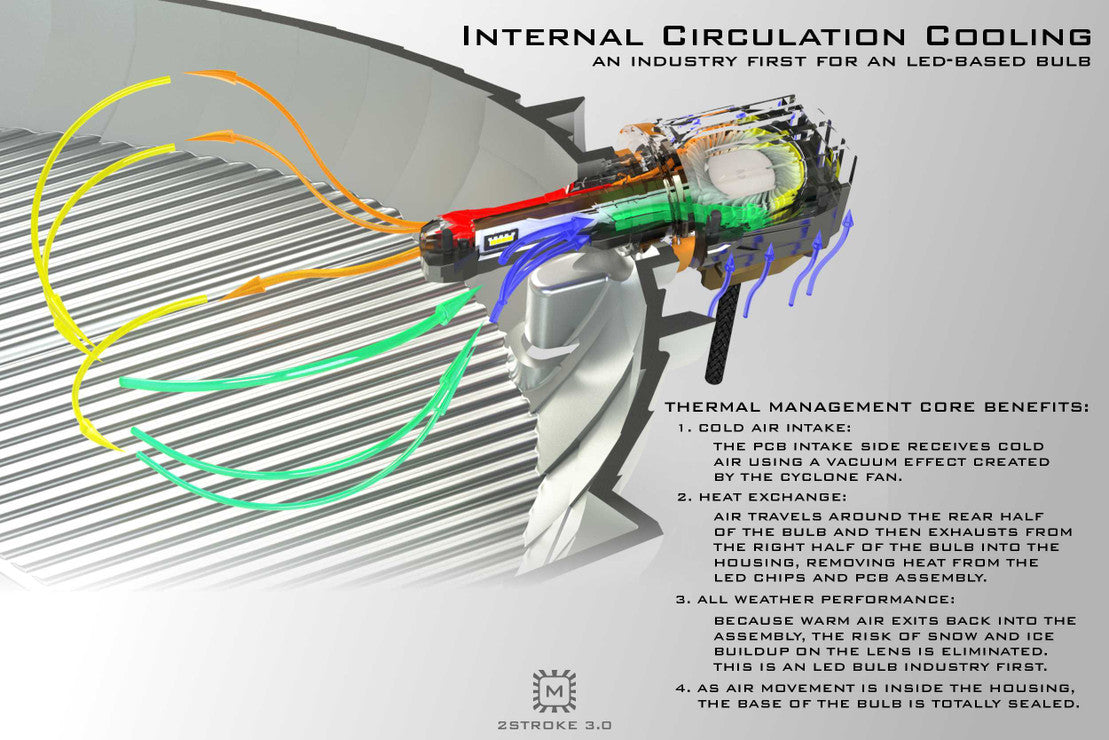

Thermal management: Once the bulb is installed, the high-speed fan contained within is completely sealed, making the 2Stroke 3.0 the first actively cooled LED bulb with a fan that's not susceptible to outside elements. Their unique internal circulation cooling system uses a 12,000-rpm cyclone fan to suck cool air into the body of the bulb and blow warm air out, back into the housing. On the intake side, cold air is sucked in past the sidewall of the PCB to exchange heat and is blown out the opposite side of the bulb. This effectively cools the bulb while warming the ambient temperature inside of the housing, increasing resistance to snow/ice buildup on the lens during the winter months. The cooling system on the 2Stroke 3.0 not only does it's job to protect the longevity of the bulb, but serves up a bad-weather benefit not found elsewhere. US Patent #11079090 (Click for Details)

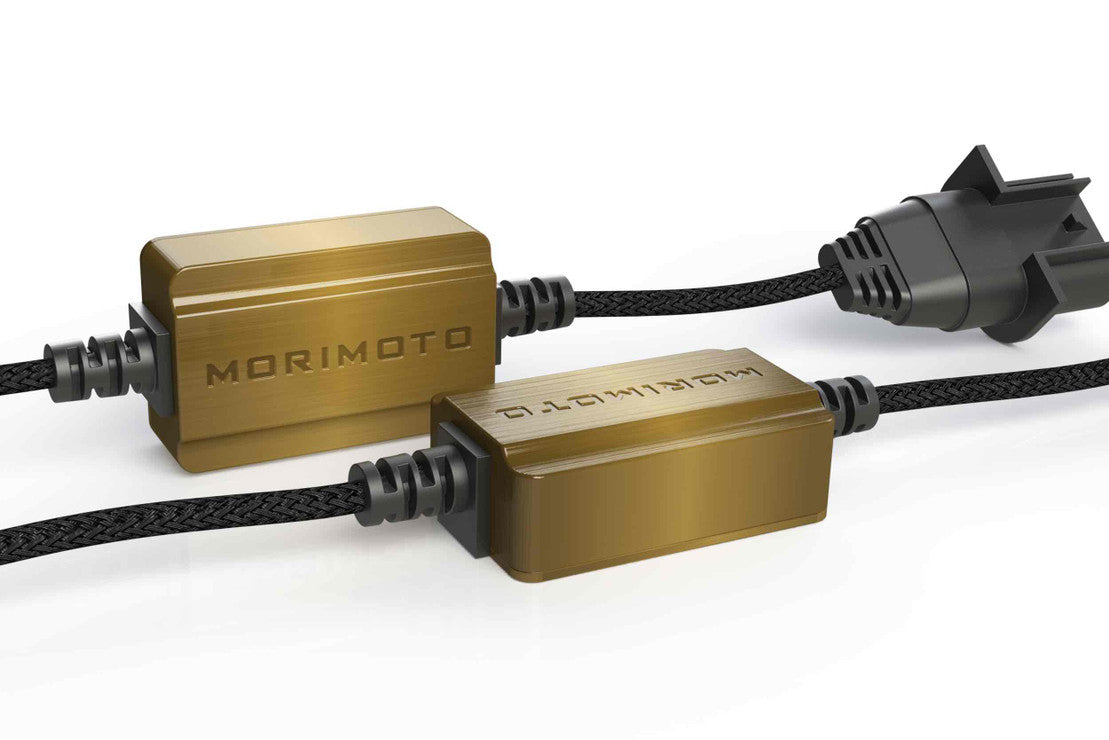

Advanced Driver: The LED Driver on the 2Stroke 3.0 H13 Bulbs is made of die-cast AL that's been electroplated. It has a double-lip seal, and has been completely potted. In combination with the high-quality over-molded wiring, these bulbs are all-weather ready.

Trusted: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet's best selection of high performance automotive and powersport lighting products at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes. Need a recommendation on parts for your project? Got a tech question? Wholesale inquiry? Contact us!
